10-32 H2 3FL HS SP FL

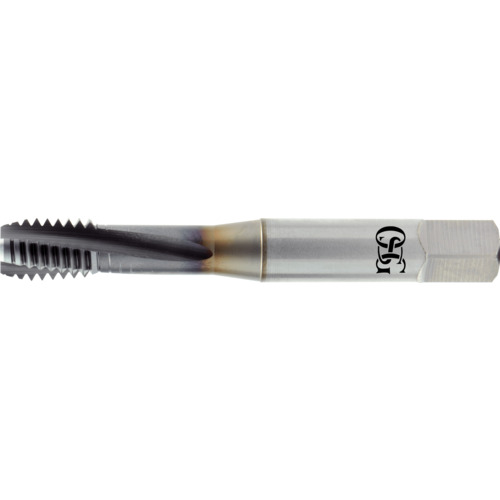

Spiral Flute Tap; #10 - 32 ; 6″ OAL ; 3 FL ; HSS-PM ; TiCN ; H2 ; Series 313TI
| Thread Diameter Size (TDZ) | #10 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 32 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 6″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 7/8″ | Flute Type | Spiral |
| Usable Length (LU) | 0.866″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Style | Modified Bottoming |
| Flute Count (NOF) | 3 | Measurement Type | Wire Gauge |
| Applicable Material | | Super-Alloys / Titanium | | ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-PM | Series/List # | 313TI |
Product Features
| Remarks | •List 3121Ti-vc,EXOTAP VC–10TI, spiral flute •High Performance Tap For Titanium Alloys •Available TiCN Finish Only •6Al4V Titanium •Hardened Steel up to 35 HRC | Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
