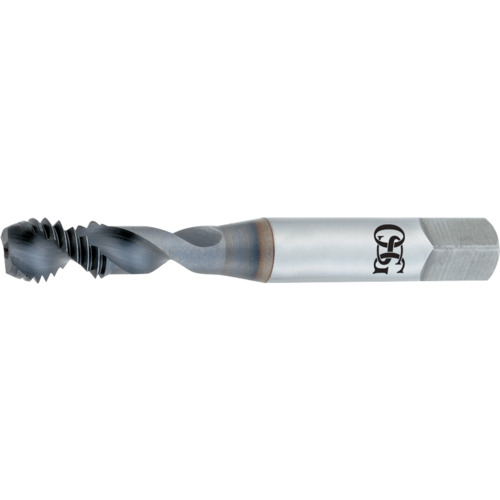

M10 1.5 Dia.-6H-2 FL - HSSE - TiCN - Modified Bottoming - Spiral Flute Tap
Spiral Flute Tap; M10 × 1.5 mm ; 2-15/16″ OAL ; 2 FL ; HSSCo ; TiCN ; 6H ; Series 13158
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 1.5 mm | Tool Type | High Performance Tap |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-15/16″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/4″ | Flute Type | Spiral |
| Usable Length (LU) | 32 mm | Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 13158 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.60000
Package Weight
0.065
