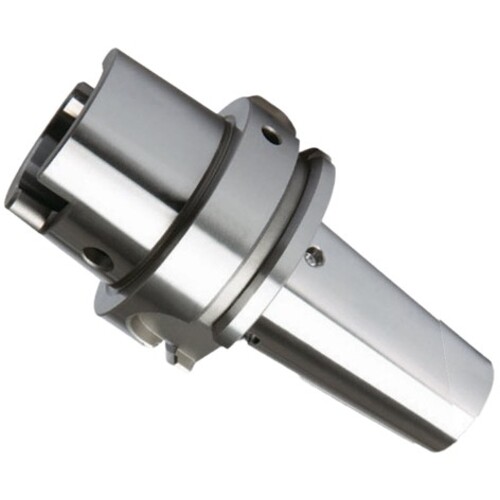

‎HSK100A-SFH3/4C-4.13

Shrink Fit Holder ; 3/4″ Hole Dia. ; 6.1024″ OAL ; 1.6535″ Body Dia. ; HSK-A Shank

Item # 1599410

Brand: YG-1 Cutting Tools

MFG #: VR036J

Legacy Part #: YG53VR036J

Trade Name: Rotary Tool Holder & Accessories

Quantity Available

Connection Diameter Workpiece Side (DCONWS)

3/4″

Shank Type

HSK-A

Shank Size (SS)

HSK100A

Thread Designation Inside (THID)

M16 × 1.0

Body Length (LB)

2.9921″

Coolant Supply Property (CSP)

Coolant Thru

Body Length_2 (LB_2)

2.2512″

Clamping Length Workpiece Side (LSCWS)

2.126″

Body Diameter (BD)

1.6535″

Gage Length

‎2.087″ - 2.480″

Body Taper End Diameter (BTED)

1.2992″

Measurement Type

Inch

Protruding Length (LPR)

4.13″

Tool Type

DUAL CONTACT SHRINK FIT HOLDER/Short Projection/ (COOLANT CHANNEL TYPE)

Overall Length (OAL)

6.1024″

Model Number

‎HSK100A-SFH3/4C-4.13

Product Features

Remarks

Taper-Face contact short reach, with coolant ports directing the coolant to the tool
Designed for rough milling, milling, finish milling, drilling, reaming, chamfering, and threadmilling

Country of Origin

S.Korea

Shipping Info

Package Length

6.69

Package Width

4.53

Package Height

4.53
