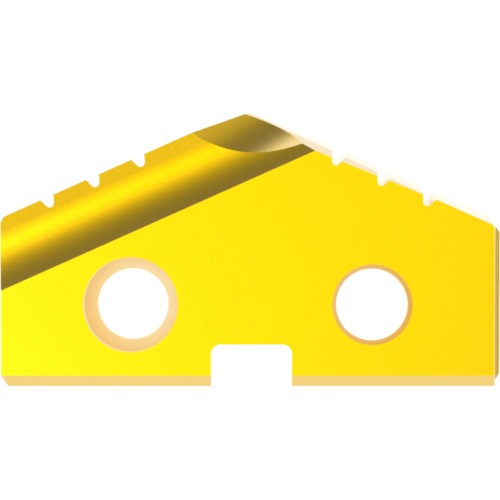

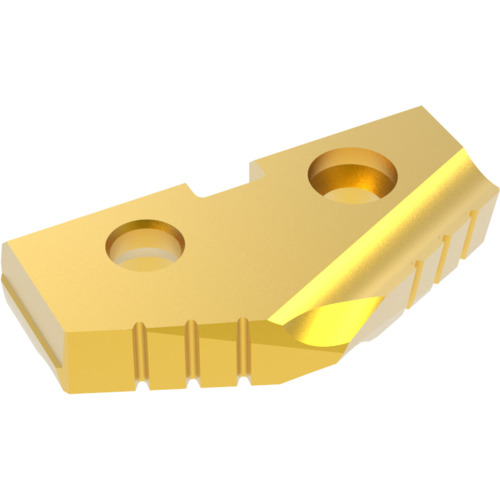

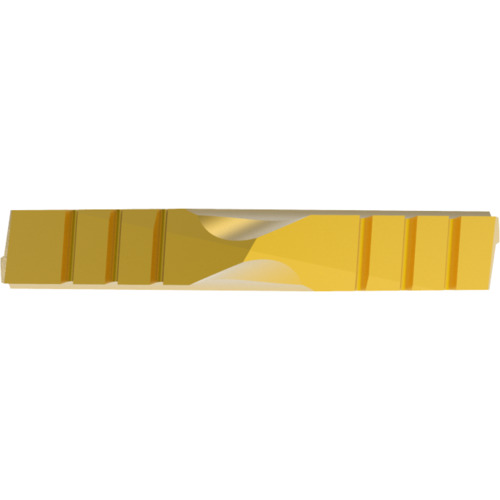

152T-0109 - 1 9/32″ Dia. - Series 2 - Super Cobalt - T-A Insert - TiN
Drill Head; 1-9/32″ Dia. × 3/16″ Thickness ; 132 Degrees ; Cobalt ; TiN ; Series 2
| Cutting Diameter (DC) | 1-9/32″ | Insert Thickness (S) | 3/16″ |
| Tool Type | T-A Drill Inserts | Point Angle (SIG) | 132 Degrees |
| Cutting Edge Material | Cobalt | Coating | TiN |
| Measurement Type | Inch | Series/List # | 2 |
Product Features
| Remarks | •Series 2 •Standard T-A ® Drill Inserts are also available with TiCN coating. T-A® Drill Insert geometry is an excellent choice for general purpose use. The design provides fast penetration rates that produce good hole size and finish. Standard geometry combines highly efficient, stable cutting action to minimize power consumption. Recommended for use in most steels, cast irons, high temperature alloys and aluminum alloys. | Country of Origin | USA |
Shipping Info
Package Length
1.28100
Package Width
.64000
Package Height
.18700
Package Weight
0.028
