18.00MM 1 COBALT TICN

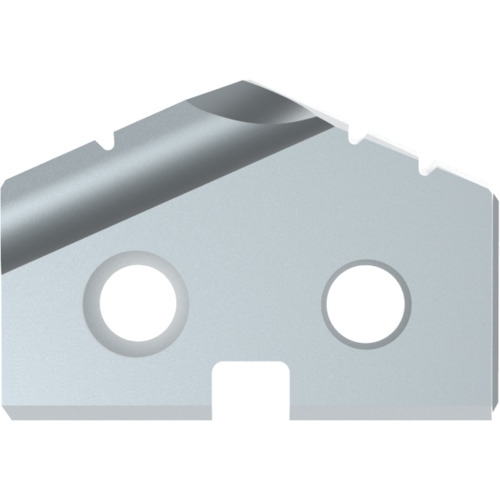

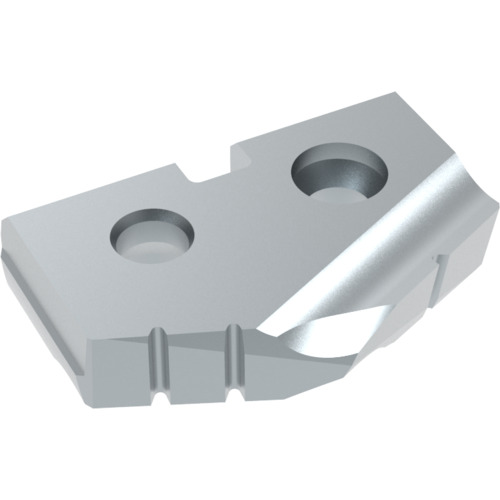

Drill Head; 18 mm Dia. × 5/32″ Thickness ; 132 Degrees ; Cobalt ; TiCN ; Series 1
| Cutting Diameter (DC) | 18 mm | Insert Thickness (S) | 5/32″ |
| Tool Type | T-A Drill Inserts | Point Angle (SIG) | 132 Degrees |
| Cutting Edge Material | Cobalt | Coating | TiCN |
| Measurement Type | Metric | Series/List # | 1 |
Product Features
| Remarks | •Series 1 •Gen2 T-ATM is the next generation in replaceable tip drilling systems. The Gen2 T-ATM patent pending design provides increased penetration rates and increased tool life. Available in two carbide grades with Allied's new AM200TM coating, the Gen2 T-ATM system can make an immediate impact on production levels. •Lower drilling forces •Increased drill stability •Smoother breakout on through holes •Improved chip formation •Supplied with AMEC's exclusive AM200TM coating for increased tool life | Country of Origin | USA |
Shipping Info
Package Weight
0.013
