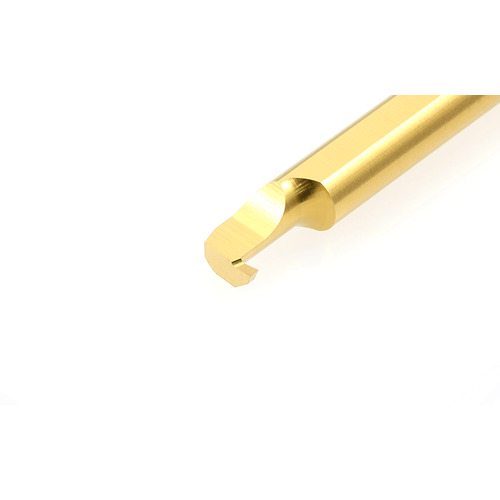

SBG050100RB-S ZM3

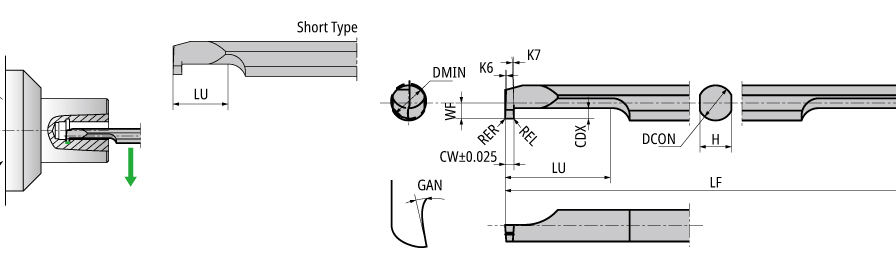

Boring Bar; 0.197″ Shank Dia. × 0.197″ Min Bore Dia. × 0.055″ Max Bore Depth × 0.2953″ LU × 2.756″ LF ; Carbide ; TiN
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Functional Width (WF) | 0.0906″ |
| Minimum Bore Diameter (DMIN) | 0.197″ | Usable Length (LU) | 0.2953″ |
| Functional Length (LF) | 2.756″ | Shank Height (H) | 0.177″ |
| Coating | TiN | Body Material | Carbide |
| Grade | ZM3 | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | | Cutting Width (CW) | 0.039″ |
| Cutting Depth Maximum (CDX) | 0.055″ |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.5
