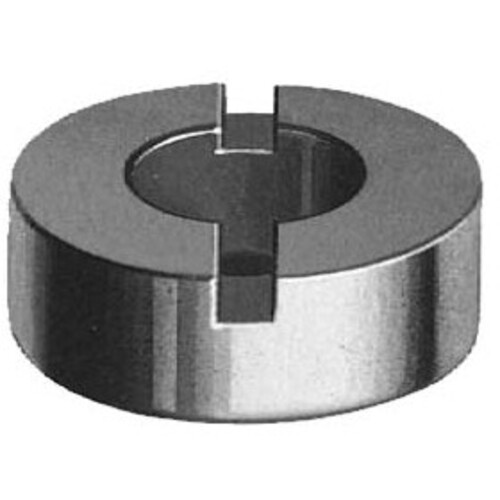

#EX25-2-1/2 For use with 1/4″ Thick Blades - Multi-Tool Auxiliary Pilot
| Tool Diameter | 2-9/16″ to 3-1/2″ | Tool Type | Multi-Tool System |
Product Features
| Remarks | •S-Type Blades •For Use with "E" Series Holders •The S-Type Blade is held with a special spring loaded set screw, producing a floating action which adjusts to uneven work surfaces or small misalignments between spindle and workpiece. If depth of cut is greater than 1/2 , advance piloted holder through the pilot hole and insert blade in an upward orientation. Reverse spindle and feed in upward cutting direction to maximum blade depth. Remove blade, withdraw pilot holder and reinsert blade in downward cutting position with right hand rotation and complete cut to break through. • High Speed Steel • Effective in Steel up to 1/2″ Thick (up to 1″ if cut from both sides) • Can be used on Low Horsepower Portable Magnetic or Fixed Machine Drilling • Adjusts to uneven work surfaces and small misalignments •Not Recommended for use in Flatted Lathe Piloted Holders. | Country of Origin | USA |
Shipping Info
Package Weight
1.3380
