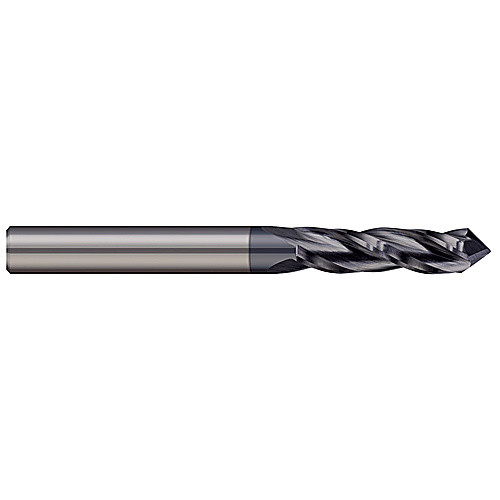

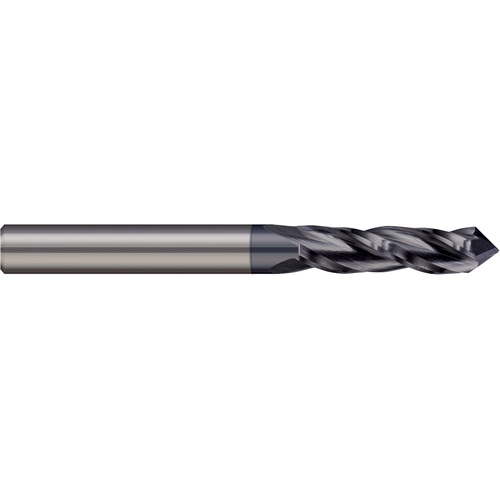

823808-C3 DR/MILL-ALTIN
Chamfer Mill; 1/8″ Dia. × 1/2″ LU × 1/2″ LOC × 1-1/2″ OAL × 1/8″ Shank Dia. ; 3 FL ; 90 Degrees ; Carbide ; AlTiN ; Series Specialty Profiles
| Cutting Diameter (DC) | 1/8″ | Coating | AlTiN |
| Decimal Equivalent | 0.125″ | Shank Type | Round |
| Usable Length (LU) | 1/2″ | End Shape | Mill Style |
| Flute Count (NOF) | 3 | Length Group | 4D |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 1/2″ | Series/List # | Specialty Profiles |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 90 Degrees | Single / Double End | Single End |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
