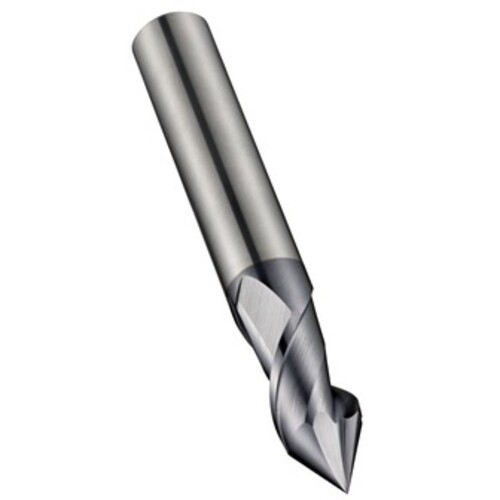

8.00 MM Dormer HM AlTiN DIN 6535 HA Shank Chamfering End Mill -60 N E-code # S7398.0
Chamfer Mill; 8 mm Dia. × 20 mm LU × 64 mm OAL × 8 mm Shank Dia. ; 2 FL ; 60 Degrees ; Carbide ; AlTiN ; Series S739
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Point Angle (SIG) | 60 Degrees |
| Application | Shank Cutter Chamfering | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8 mm | Coating | AlTiN |
| Usable Length (LU) | 20 mm | Shank Type | Round |
| Flute Count (NOF) | 2 | Style | Chamfer Mill |
| Flute Helix Angle (FHA) | 40 Degrees | Length Group | Short | Stub |
| Overall Length (OAL) | 64 mm | Standard | DIN 6535 HA |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | S739 |
Product Features
| Family Description | E-code # S7398.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.19
