HPCM90-20250_

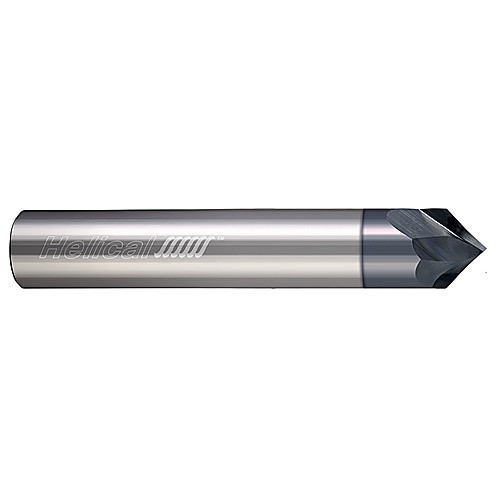

Chamfer Mill; 1/4″ Dia. × 0.12″ LU × 0.12″ LOC × 2-1/2″ OAL × 1/4″ Shank Dia. ; 2 FL ; 90 Degrees ; Carbide ; AlTiN
| Applicable Material | | General Purpose | | Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Cutting Diameter (DC) | 1/4″ | Point Angle (SIG) | 90 Degrees |
| Decimal Equivalent | 0.25″ | Cutting Edge Material | Carbide |
| Usable Length (LU) | 0.12″ | Coating | AlTiN |
| Flute Count (NOF) | 2 | End Shape | Pointed |
| Depth of Cut Maximum (APMX) | 0.12″ | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
