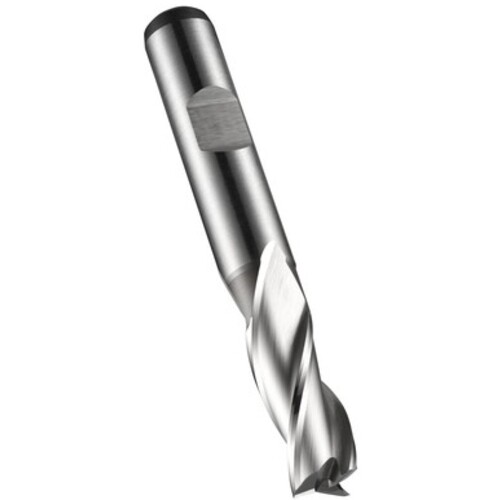

3.50 MM Dormer HSS-E-PM Bright DIN 1835 B Shank Slot Drill N DIN 844 K E-code # C3053.5
Chamfer Mill; 3.5 mm Dia. × 10mm LOC × 54 mm OAL ; 3 FL ; HSSCo-PM ; Uncoated ; Series C305
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | Shank Cutter Slotting | Shank Type | Weldon |
| Cutting Diameter (DC) | 3.5 mm | Style | Milling Cutters |
| Flute Count (NOF) | 3 | Length Group | Short | Stub |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Standard | DIN 1835 B |
| Depth of Cut Maximum (APMX) | 10mm | Standard | DIN 844 K |
| Overall Length (OAL) | 54 mm | Series/List # | C305 |
| Cutting Edge Material | HSSCo-PM | Shank Size | 6mm |
Product Features
| Family Description | E-code # C3053.5 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.445
