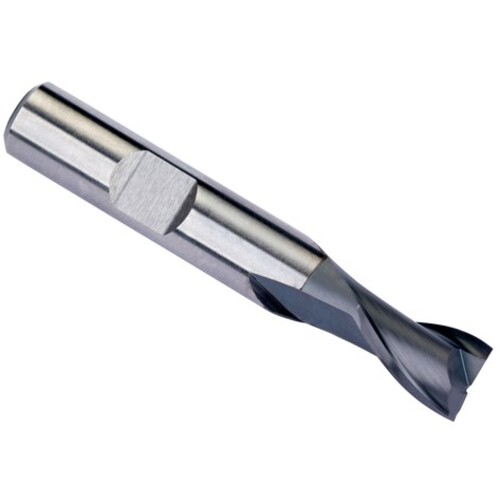

4.00 MM Dormer HSS-E-PM TiCN DIN 1835 B Shank Slot Drill N DIN 327 E-code # C1264.0
Chamfer Mill; 4 mm Dia. × 7mm LOC × 51 mm OAL ; 2 FL ; HSSCo-PM ; TiCN ; Series C126
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | TiCN |
| Application | Shank Cutter Slotting | Shank Type | Weldon |
| Cutting Diameter (DC) | 4 mm | Style | Milling Cutters |
| Flute Count (NOF) | 2 | Length Group | Extra Short |
| Flute Helix Angle (FHA) | 30 Degrees | Shank Standard | DIN 1835 B |
| Depth of Cut Maximum (APMX) | 7mm | Standard | DIN 327 D |
| Overall Length (OAL) | 51 mm | Series/List # | C126 |
| Cutting Edge Material | HSSCo-PM | Shank Size | 6mm |
Product Features
| Family Description | E-code # C1264.0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.455
