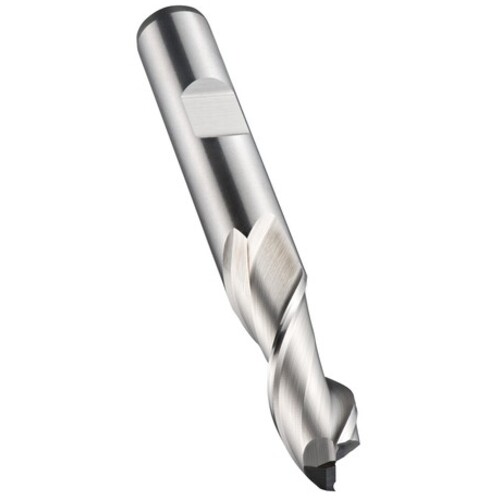

20.00 MM Dormer HSS-E Bright DIN 1835 B Shank Slot Drill W DIN 844 K E-code # C15920.0
Chamfer Mill; 20 mm Dia. × 53.5 mm LU × 38mm LOC × 104 mm OAL ; 2 FL ; HSSCo ; Uncoated ; Series C159
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | Shank Cutter Slotting | Shank Type | Weldon |
| Cutting Diameter (DC) | 20 mm | Style | Milling Cutters |
| Usable Length (LU) | 53.5 mm | Length Group | Short | Stub |
| Flute Count (NOF) | 2 | Shank Standard | DIN 1835 B |
| Flute Helix Angle (FHA) | 40 Degrees | Standard | DIN 844 K |
| Depth of Cut Maximum (APMX) | 38mm | Series/List # | C159 |
| Overall Length (OAL) | 104 mm | Shank Size | 20mm |
| Cutting Edge Material | HSSCo |
Product Features
| Family Description | E-code # C15920.0 | Country of Origin | Poland |
Shipping Info
Package Weight
7.07
