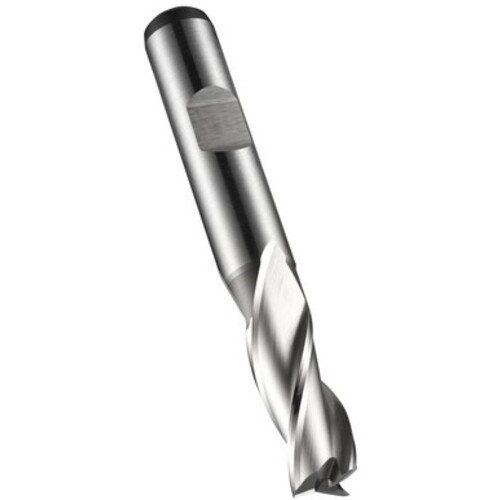

10.00 MM Dormer HSS-E-PM Bright DIN 1835 B Shank Slot Drill N DIN 844 K E-code # C30510.0
Chamfer Mill; 10 mm Dia. × 31.5 mm LU × 22mm LOC × 72 mm OAL ; 3 FL ; HSSCo-PM ; Uncoated ; Series C305
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | Shank Cutter Slotting | Shank Type | Weldon |
| Cutting Diameter (DC) | 10 mm | Style | Milling Cutters |
| Usable Length (LU) | 31.5 mm | Length Group | Short | Stub |
| Flute Count (NOF) | 3 | Shank Standard | DIN 1835 B |
| Flute Helix Angle (FHA) | 30 Degrees | Standard | DIN 844 K |
| Depth of Cut Maximum (APMX) | 22mm | Series/List # | C305 |
| Overall Length (OAL) | 72 mm | Shank Size | 10mm |
| Cutting Edge Material | HSSCo-PM |
Product Features
| Family Description | E-code # C30510.0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
1.467
