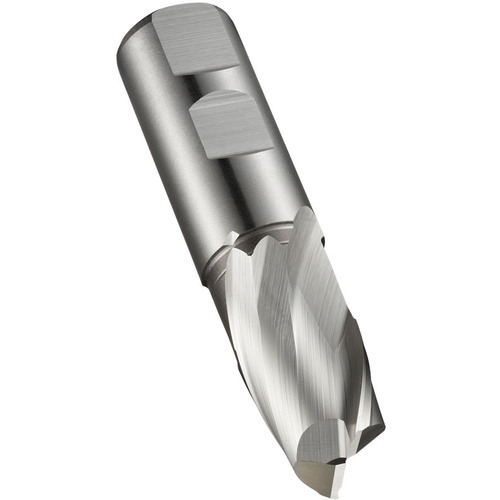

1″ Dormer HSS-E-PM Bright DIN 1835 B Shank Slot Drill N DIN 327 E-code # C1101
Chamfer Mill; 1″ Dia. × 45.5 mm LU × 26mm LOC × 102 mm OAL ; 2 FL ; HSSCo-PM ; Uncoated ; Series C110
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | Shank Cutter Slotting | Shank Type | Weldon |
| Cutting Diameter (DC) | 1″ | Style | Milling Cutters |
| Usable Length (LU) | 45.5 mm | Length Group | Extra Short |
| Flute Count (NOF) | 2 | Shank Standard | DIN 1835 B |
| Flute Helix Angle (FHA) | 30 Degrees | Standard | DIN 327 D |
| Depth of Cut Maximum (APMX) | 26mm | Series/List # | C110 |
| Overall Length (OAL) | 102 mm | Shank Size | 25mm |
| Cutting Edge Material | HSSCo-PM |
Product Features
| Family Description | E-code # C1101 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
11.445
