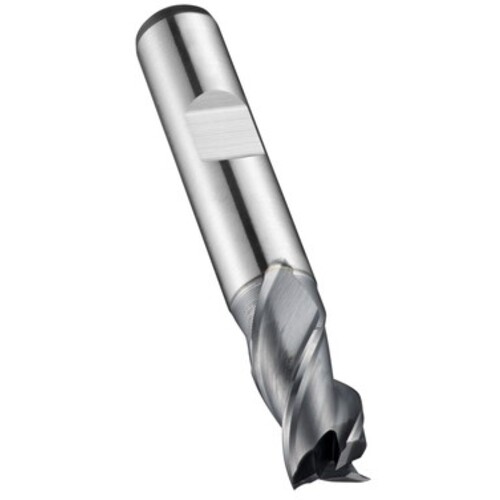

10.00 MM Dormer HSS-E-PM ALCRONA DIN 1835 B Shank Slot Drill N DIN 327 E-code # C36710.0
Chamfer Mill; 10 mm Dia. × 22.5 mm LU × 13mm LOC × 63 mm OAL ; 3 FL ; HSSCo-PM ; AlCrN ; Series C367
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlCrN |
| Application | Shank Cutter Slotting | Shank Type | Weldon |
| Cutting Diameter (DC) | 10 mm | Style | Milling Cutters |
| Usable Length (LU) | 22.5 mm | Length Group | Extra Short |
| Flute Count (NOF) | 3 | Shank Standard | DIN 1835 B |
| Flute Helix Angle (FHA) | 40 Degrees | Standard | DIN 327 D |
| Depth of Cut Maximum (APMX) | 13mm | Series/List # | C367 |
| Overall Length (OAL) | 63 mm | Shank Size | 10mm |
| Cutting Edge Material | HSSCo-PM |
Product Features
| Family Description | E-code # C36710.0 | Country of Origin | Poland |
Shipping Info
Package Weight
1.365
