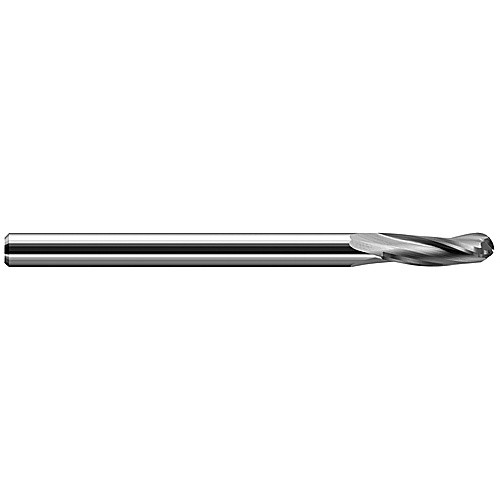

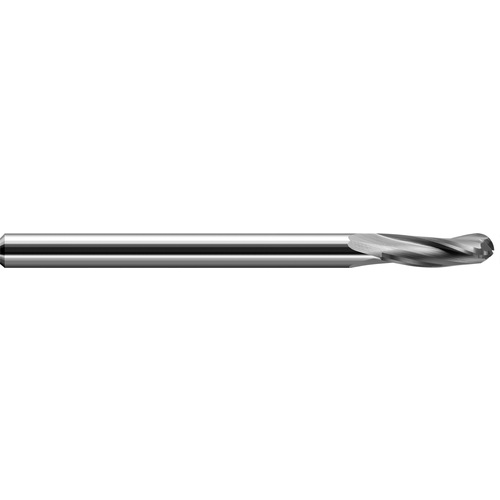

Ballnose End Mill; 3/8″ Dia. × 1-1/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated
BN End Mill; 3/8″ Dia. × 1-1/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/8″ | Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Other Non-Metallic Materials | |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Corner Radius (RE) | 3/16″ |
| Overall Length (OAL) | 3″ | Length Group | 3D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 20 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
