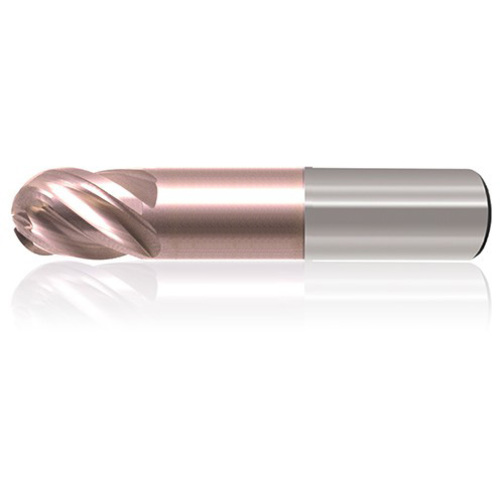

5/8X5/8X1X2X4 5FL BALL
BN End Mill; 5/8″ Dia. × 1″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; VARIANTIC ; Series 577

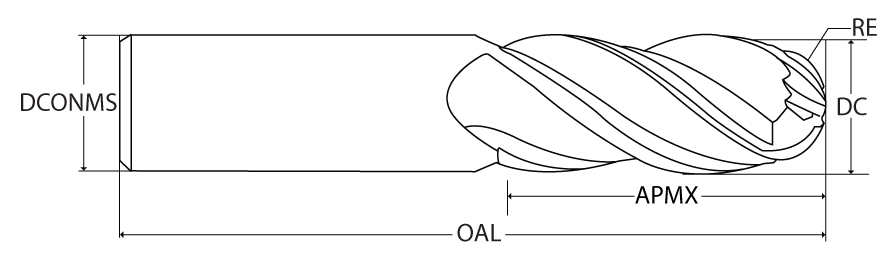

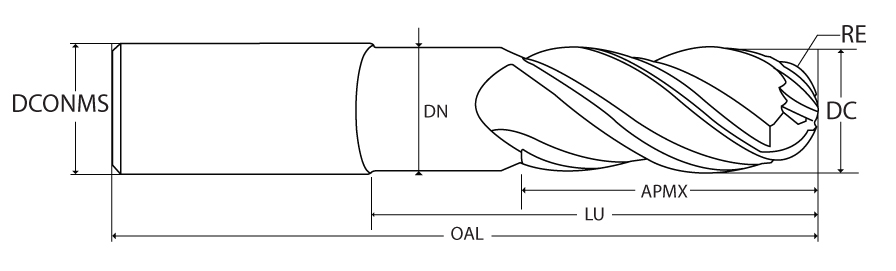

| Cutting Diameter (DC) | 5/8″ | Number of Teeth | 5 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Grade | H5003 Vulcan |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | Length Group | Stub - Necked |
| Cutting Edge Material | Carbide | End Shape | Ballnose |
| Coating | VARIANTIC | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Necked |
| Usable Length (LU) | 2″ | Decimal Equivalent | 0.625″ |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Finish | HEM | Profiling | Semi Finish | | Series/List # | 577 |
| Corner Radius (RE) | 5/16″ | Shank Size (SS) | 5/8″ |
| Neck Diameter (DN) | 0.6″ |
Product Features
| Family Description | 5 Flute Ballnose for Finishing, variable Pitch,reduced neck Center cutting, 38° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
