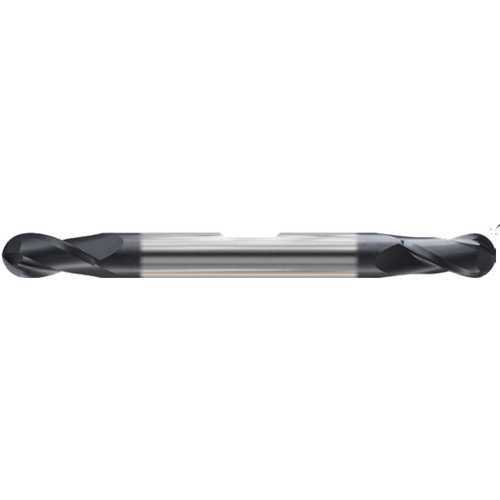

Ball Nose End Mill; 5/64″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; X-Coating ; Series G9I05
BN End Mill; 5/64″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlCrN ; Series G9I05
| Cutting Diameter (DC) | 5/64″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.0391″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Length Group | Regular |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0781″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | G9I05 |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
0.51181
Package Width
0.51181
Package Height
2.12598
Package Weight
0.999
