3/4X3/4X2 1/4X5 3FL BALL_

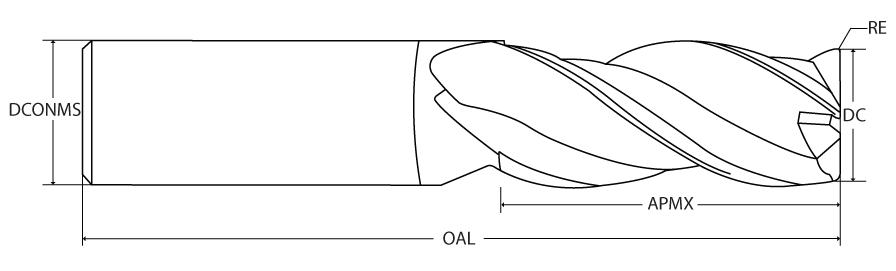

BN End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; Ta-C ; Series 337
| Cutting Diameter (DC) | 3/4″ | Grade | A5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Length Group | Long |
| Overall Length (OAL) | 5″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/4″ | Series/List # | 337 |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.01 ″/tooth |
| Corner Radius (RE) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Number of Teeth | 3 | Shank Size (SS) | 3/4″ |
Product Features
| Family Description | 337 SERIES 3 FLUTE FOR ALUMINUM & NON FERROUS MATERIAL (37° HELIX, BALLNOSE) | Country of Origin | USA |
Shipping Info
Package Weight
1.44
