1/2X1/2X7/8X1 3/8X3___3FL

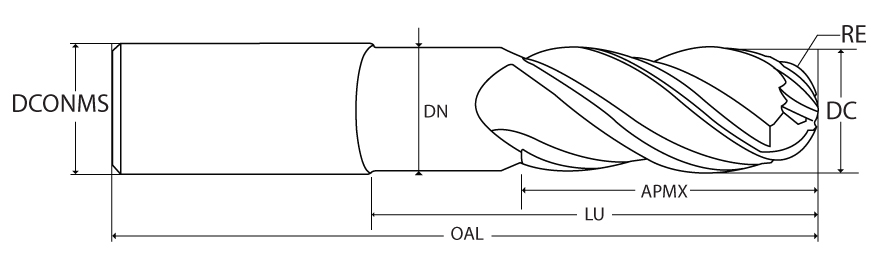

BN End Mill; 1/2″ Dia. × 7/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; TiN ; Series 337
| Cutting Diameter (DC) | 1/2″ | Tool Type | Solid Carbide Endmill |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Length Group | Stub - Necked |
| Depth of Cut Maximum (APMX) | 7/8″ | End Shape | Ballnose |
| Overall Length (OAL) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Shank Standard | h6 |
| Coating | TiN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Style | Necked |
| Flute Helix Angle (FHA) | 37 Degrees | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1-3/8″ | Series/List # | 337 |
| Application | | Finish | HEM | Roughing | Semi Finish | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.007 ″/tooth |
| Corner Radius (RE) | 1/4″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Neck Diameter (DN) | 0.48 | Shank Size (SS) | 1/2″ |
| Number of Teeth | 3 |
Product Features
| Family Description | 337 SERIES 3 FLUTE FOR ALUMINUM & NON FERROUS MATERIAL (37° HELIX WITH EXT. NECK, BALLNOSE) | Country of Origin | USA |
Shipping Info
Package Weight
0.363
