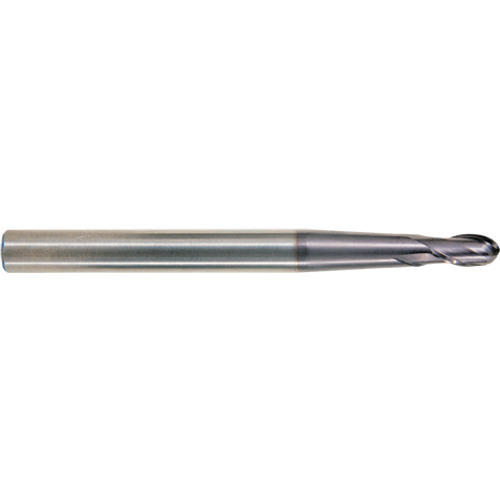

Ball Nose End Mill; 1/4″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 4-3/8″ OAL ; 2 FL ; Carbide ; Y-Coating ; Series GM963

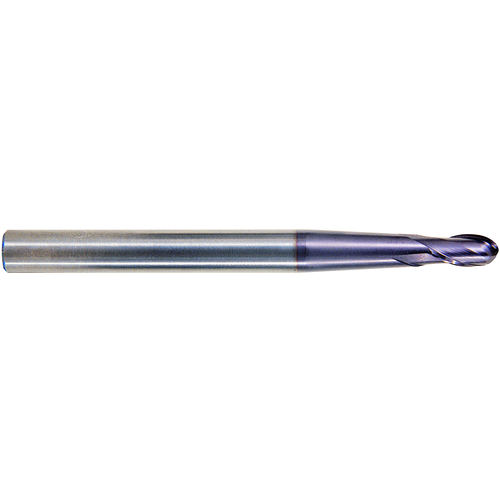

BN End Mill; 1/4″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 4-3/8″ OAL ; 2 FL ; Carbide ; AlCrN ; Series GM963
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Neck Diameter (DN) | 0.325″ |
| Overall Length (OAL) | 4-3/8″ | Neck Length (LN) | 5/8″ |
| Cutting Edge Material | Carbide | Tool Type | Ballnose Endmill |
| Coating | AlCrN | Length Group | Extra Long |
| Flute Count (NOF) | 2 | End Shape | Ball Nose |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.25″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 2-1/16″ | Series/List # | GM963 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.75
Package Width
0.75
Package Height
0.75
Package Weight
0.22
