1/2X1/2X5/8X4X2 1/8X3 RH
BN End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Ta-C ; Series H337

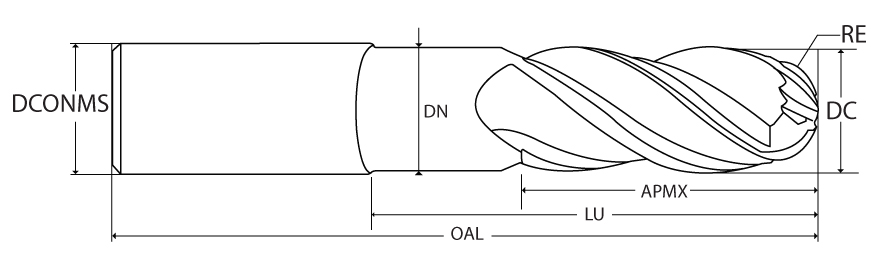

| Cutting Diameter (DC) | 1/2″ | Grade | A5005 Exxtral Carbon (DLC) |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | Standard - Necked |
| Overall Length (OAL) | 4″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Ta-C | Shank Standard | h6 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Style | Necked |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 2-1/8″ | Measurement Type | Inch |
| Applicable Material | | Aluminum | Non Ferrous Metals | | Series/List # | H337 |
| Application | | Finish | HEM | HPM | Profiling | Roughing | Semi Finish | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Corner Radius (RE) | 1/4″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Neck Diameter (DN) | 0.48 | Shank Size (SS) | 1/2″ |
| Number of Teeth | 3 |
Product Features
| Family Description | 3 Flute Ballnose for Finishing, HPM+, Reduced Neck Center cutting, 37° helix angle, High Performance For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.485
