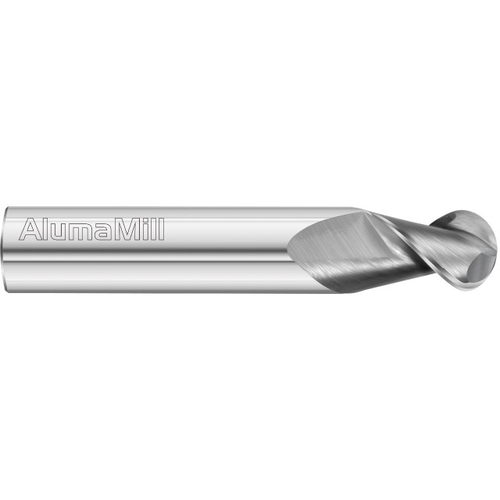

1/2″ Dia. × 1/2″ Shank × 3/4″ DOC × 3″ OAL, Carbide Uncoated, 2 Flute, 45° Helix, Round, External , Ballnose End Mill

‹ ›

1/2″ Dia. × 1/2″ Shank × 3/4″ DOC × 3″ OAL, Carbide Uncoated, 2 Flute, 45° Helix, Round, External , Ballnose End Mill

BN End Mill; 1/2″ Dia. × 3/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3825

Item # FUL 38530

Brand: Fullerton Tool

MFG #: 38530

Legacy Part #: FT8538530

Trade Name: 3825 AlumaMill End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/2″

Tool Type

Center Cut|Single-End

Depth of Cut Maximum (APMX)

3/4″

Length Group

Short|Stub

Overall Length (OAL)

3″

End Shape

Ball Nose

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

0.5″

Flute Count (NOF)

Series/List #

3825

Flute Helix Angle (FHA)

45 Degrees

Product Features

Remarks

‎

Square, Ball and Radius End

2 Flutes

45° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.275
