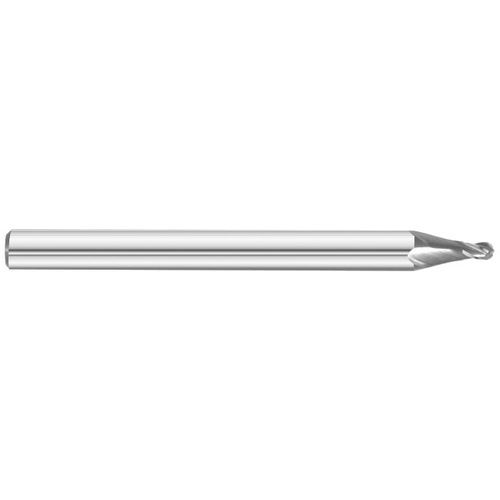

‎0.06″ Dia. × 1/8″ Shank × 0.18″ DOC × 1-1/2″ OAL, Carbide Uncoated, 4 Flute, 30° Helix, Round, External , Ballnose End Mill

‹ ›

‎0.06″ Dia. × 1/8″ Shank × 0.18″ DOC × 1-1/2″ OAL, Carbide Uncoated, 4 Flute, 30° Helix, Round, External , Ballnose End Mill

‎BN End Mill; 0.06″ Dia. × 0.18″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; Uncoated

Item # FUL 30969

Brand: Fullerton Tool

MFG #: 30969

Legacy Part #: FT8530969

Trade Name: 3200SM Sub-Miniature End Mill

Quantity Available

Cutting Diameter (DC)

0.06″

Flute Helix Angle (FHA)

30 Degrees

Connection Diameter Machine Side (DCONMS)

1/8″

Shank Type

Round

Depth of Cut Maximum (APMX)

0.18″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎1-1/2″

Length Group

Regular

Cutting Edge Material

Carbide

End Shape

Ball

Coating

Uncoated

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.06″

Product Features

Remarks

‎

Special Sub Miniature Design

Square or Ball End

4 Flutes

30° Helix

3 x Diameter Flute Length

.1250 Inch h6 Shank Diameter

1.5000 Inch Overall Length Single End

Right Hand Spiral

Right Hand Cut

Standard Uncoated

Inch Based Tools

Center Cutting

Dura Carb II for Enhanced Shock Resistance

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +/- . 0005″ / +/–0.02mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.021
