3400SD FC18 B .6250 RH SE

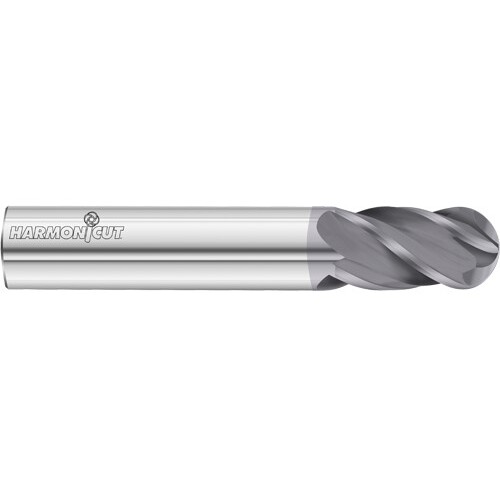

‎BN End Mill; 5/8″ Dia. × 1-1/2″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide

Item # FUL 34109

Brand: Fullerton Tool

MFG #: 34109

Legacy Part #: FT8534109

Quantity Available

Cutting Diameter (DC)

5/8″

Flute Helix Angle (FHA)

Variable

Connection Diameter Machine Side (DCONMS)

5/8″

Shank Type

Round

Depth of Cut Maximum (APMX)

‎1-1/2″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎3-1/2″

Length Group

Regular

Cutting Edge Material

Carbide

End Shape

Ball

Coating

FC18

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.625″

Product Features

Remarks

‎

Square, Ball and Corner Radius End

4 Flutes

Variable Helix

Variable Index

Variable Rake

Superior Core Strength

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

.340
