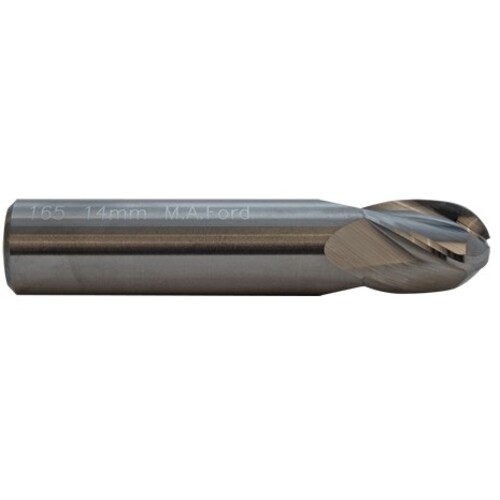

1/8 STUB LG 4F BN TIALN
BN End Mill; 1/8″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 165
| Cutting Diameter (DC) | 1/8″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Tool Type | Center Cut|Single-End |
| Depth of Cut Maximum (APMX) | 1/4″ | Length Group | Stub |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | AlTiN | Series/List # | 165 |
Product Features
| Family Description | Alternate Manufacture # 56534 | Country of Origin | USA |
| Remarks | •4 Flute End Mill •Center Cutting •Stub Length •30 Degree Helix •Ball Nose •Straight Shank • Manufactured with a full ball radius end. •Ideal for most ferrous metal applications •ALtima® Coated |
Shipping Info
Package Length
1.62500
Package Width
.25000
Package Height
.25000
Package Weight
0.009
