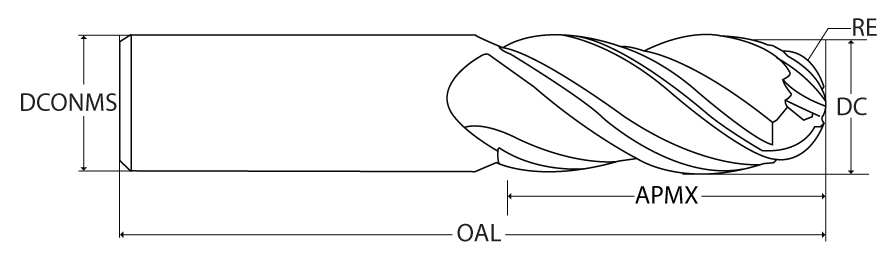

1 × 1 × 1-1/4 × 3-4F RH
BN End Mill; 1″ Dia. × 1-1/4″ LOC × 1″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; TiAICN ; Series 423
| Cutting Diameter (DC) | 1″ | Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Length Group | Stub |
| Overall Length (OAL) | 3″ | End Shape | Ballnose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAICN | Shank Standard | h6 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 20 Degrees | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ | Series/List # | 423 |
| Application | | Roughing | Semi Finish | | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Corner Radius (RE) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0025 ″/tooth |
| Number of Teeth | 4 | Shank Size (SS) | 1″ |
Product Features
| Family Description | 423 SERIES 4 FLUTE FINE PITCH ROUGHER WITH 20° HELIX (BALLNOSE) | Country of Origin | USA |
Shipping Info
Package Weight
2.65
