30104 1/32X1/8X5/64X1-1/2

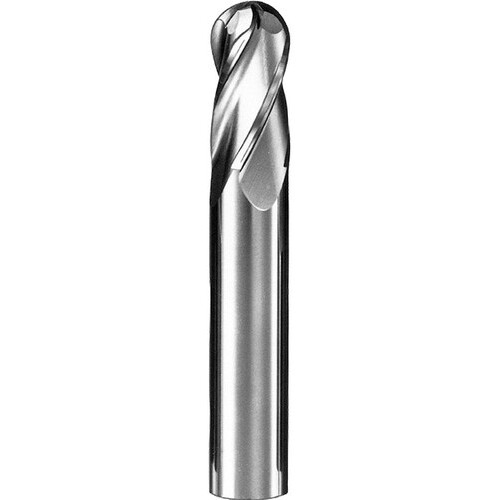

BN End Mill; 1/32″ Dia. × 5/64″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/32″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 5/64″ | Usable Length (LU) | 1.422″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Style | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.03125″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.012
