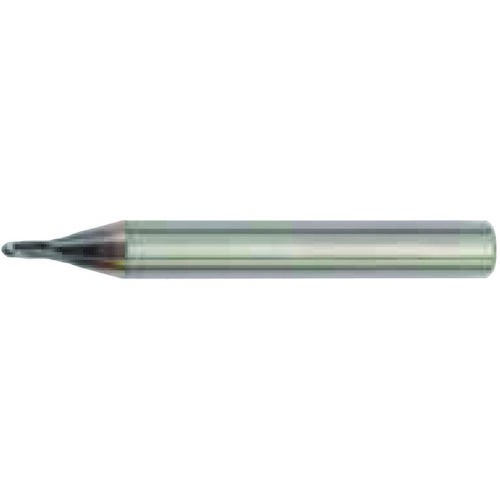

3 mm Dia. × 6 mm Shank × 3 mm DOC × 50 mm OAL, Carbide AlTiN, 2 Flute, 30°|CW Helix, Round, External , Ballnose End Mill
| Cutting Diameter (DC) | 3 mm | Usable Length (LU) | 6 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 3 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 50 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Style | 82-06 SEM Ball Nose Side-Cntr |
| Flute Helix Angle (FHA) | 30 Degrees|CW | Decimal Equivalent | 0.1181″ |
| Shank Type | Round |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0470
