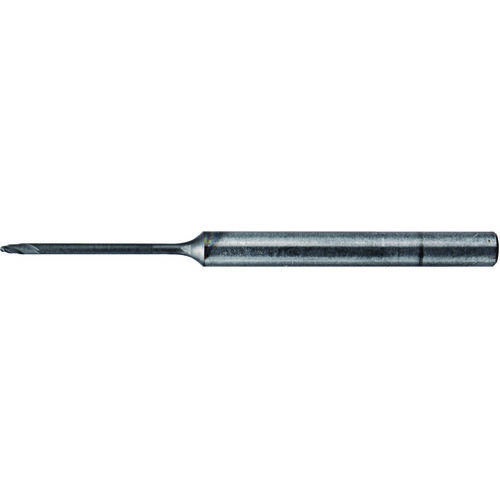

3 mm Dia. × 4 mm Shank × 4.5 mm DOC × 63 mm OAL, Carbide TiAlN, 2 Flute, 30°|CW Helix, Round, External , Ballnose End Mill
BN End Mill; 3 mm Dia. × 4.5 mm LOC × 4 mm Shank Dia. × 63 mm OAL ; 2 FL ; Carbide ; TiAlN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3 mm | Usable Length (LU) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 4.5 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 63 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Style | 82-06 SEM Ball Nose Side-Cntr |
| Flute Helix Angle (FHA) | 30 Degrees|CW | Decimal Equivalent | 0.1181″ |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.068
