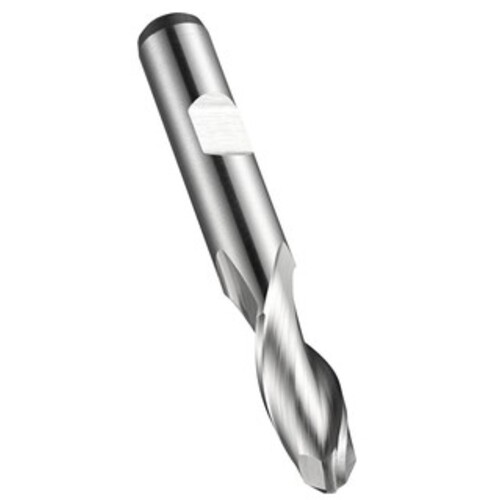

22 mm Dia. × 20 mm Shank × 38 mm DOC × 104 mm OAL, HSSCo Bright, 2 Flute, 30° Helix, Weldon, Ballnose End Mill
BN End Mill; 22 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 2 FL ; HSSCo ; Uncoated ; Series C505
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 22 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | Shank Cutter Ballnosing |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 11 mm |
| Overall Length (OAL) | 104 mm | Tool Type | Milling Cutters |
| Cutting Edge Material | HSSCo | Length Group | Short | Stub |
| Coating | Uncoated | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Shank Standard | DIN 1835 B |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | HSS-E (cobalt high speed steel) Material |
| Shank Type | Weldon | Decimal Equivalent | 0.8661″ |
| Usable Length (LU) | 53.5 mm | Series/List # | C505 |
Product Features
| Family Description | E-code # C50522.0 | Country of Origin | Poland |
Shipping Info
Package Weight
7.28
