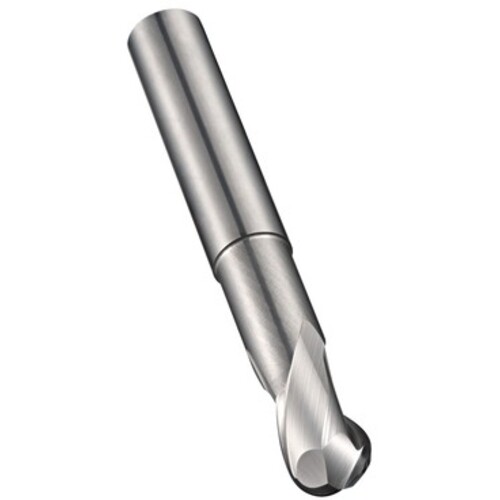

20 mm Dia. × 20 mm Shank × 22 mm DOC × 100 mm OAL, Carbide 2 Flute, 30° Helix, Round, Ballnose End Mill
BN End Mill; 20 mm Dia. × 22 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 2 FL ; Carbide ; Series S629
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Application | Shank Cutter Ballnosing |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Corner Radius (RE) | 10 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Tool Type | Milling Cutters |
| Overall Length (OAL) | 100 mm | Length Group | Extra Short |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | HM Material |
| Shank Type | Round | Decimal Equivalent | 0.7874″ |
| Usable Length (LU) | 50 mm | Series/List # | S629 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | E-code # S62920.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
13.3
