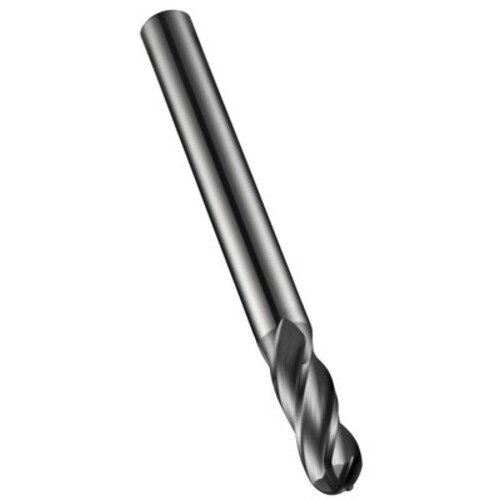

10 mm Dia. × 10 mm Shank × 22 mm DOC × 100 mm OAL, Carbide 4 Flute, 30° Helix, Round, Ballnose End Mill
BN End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; Series S511
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Application | Shank Cutter Ballnosing |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 5 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Tool Type | Milling Cutters |
| Overall Length (OAL) | 100 mm | Length Group | Short | Stub |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | HM Material |
| Shank Type | Round | Decimal Equivalent | 0.3937″ |
| Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | S511 |
Product Features
| Family Description | E-code # S51110.0 | Country of Origin | Italy |
Shipping Info
Package Weight
4.06
