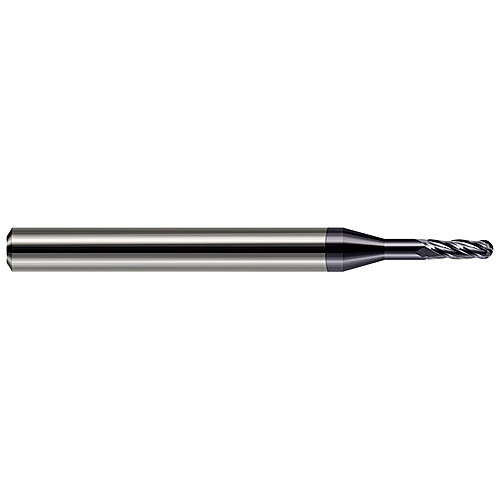

.031BALL CARB 5X RCH EM
BN End Mill; 1/32″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/32″ | Usable Length (LU) | 5/32″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Group | 5D |
| Depth of Cut Maximum (APMX) | 3/32″ | End Shape | Ball Nose |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Standard |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.03125″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
