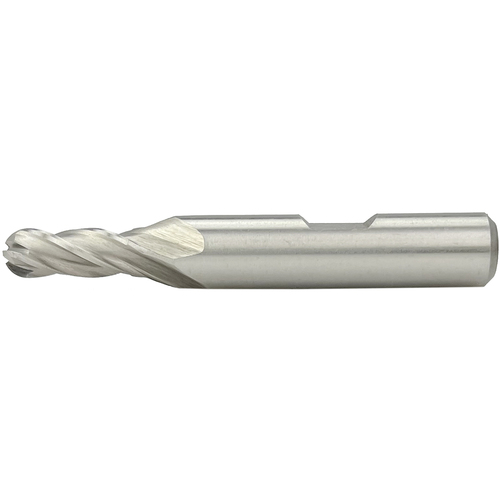

1/4″ Dia. × 3/8″ Shank × 5/8″ DOC × 2-7/16″ OAL, HSS Uncoated, 4 Flute, External , Ballnose End Mill
BN End Mill; 1/4″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-7/16″ OAL ; 4 FL ; HSS ; Uncoated
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | Single-End |
| Depth of Cut Maximum (APMX) | 5/8″ | Length Group | Standard |
| Overall Length (OAL) | 2-7/16″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Style | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
Product Features
| Remarks | •4-Flute, Single End Ball Nose •High Speed Steel • Center Cutting • Regular & Long Length | Country of Origin | China |
Shipping Info
Package Length
2.60000
Package Width
.60000
Package Height
.60000
Package Weight
0.05
