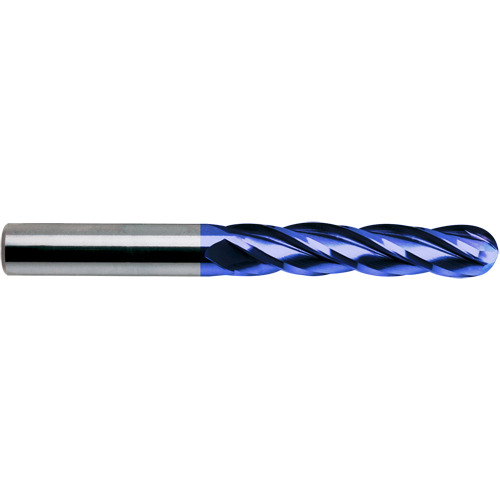

Ball Nose End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5062
BN End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5062
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 3″ | Length Group | Extra Long |
| Overall Length (OAL) | 6″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.75″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E5062 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 3″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.375
Package Width
1.125
Package Height
1.125
Package Weight
1.16
