1/4X1-1/8 4 2FL BN CBD EM

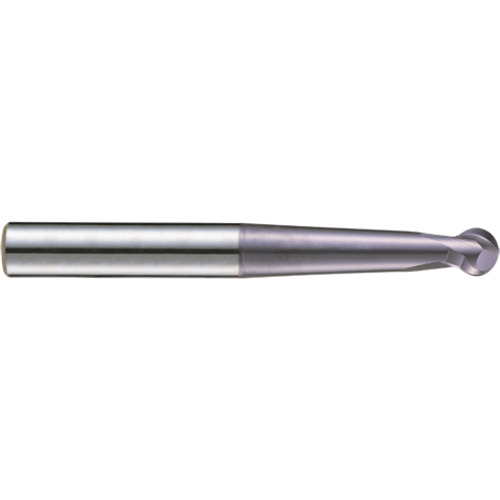

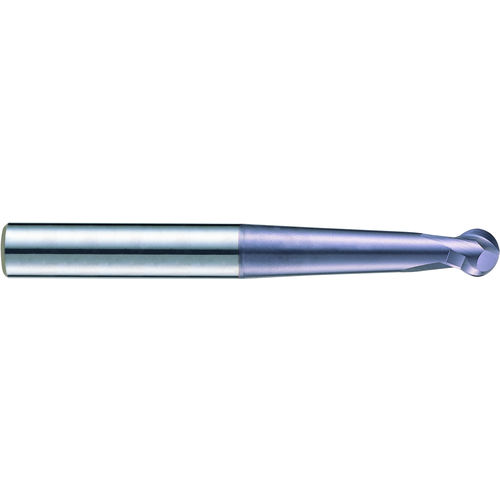

BN End Mill; 1/4″ Dia. × 0.2″ LOC × 1/4″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series EM096
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 0.2″ | Neck Diameter (DN) | 0.2″ |
| Overall Length (OAL) | 4″ | Length Group | Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | EM096 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-1/8″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.375
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.106
