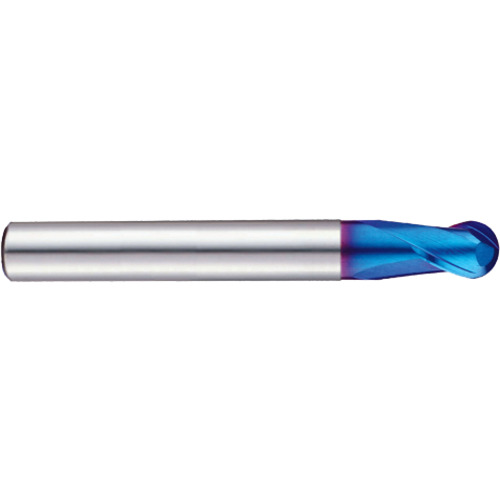

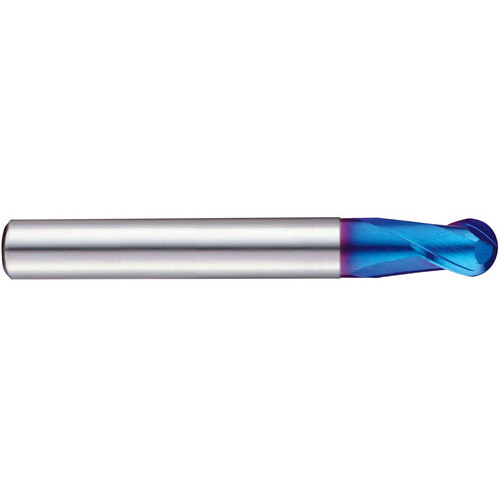

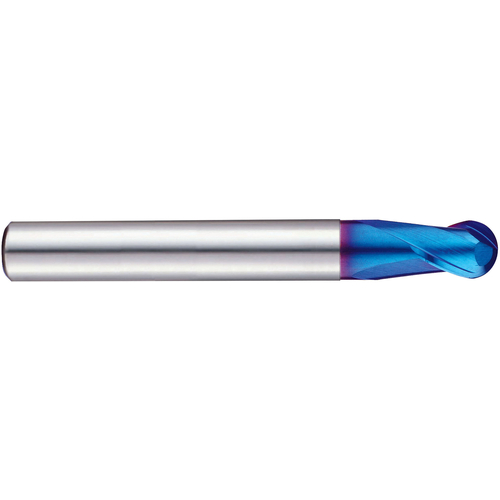

Ball Nose End Mill; 3 mm Dia. × 4 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 2 FL ; Carbide ; Blue Coating ; Series G8A28
BN End Mill; 3 mm Dia. × 4 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 2 FL ; Carbide ; AlTiSiN ; Series G8A28
| Cutting Diameter (DC) | 3 mm | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Neck Diameter (DN) | 2.85 mm |
| Overall Length (OAL) | 60 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1181″ |
| Coating | AlTiSiN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | G8A28 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 10 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0
