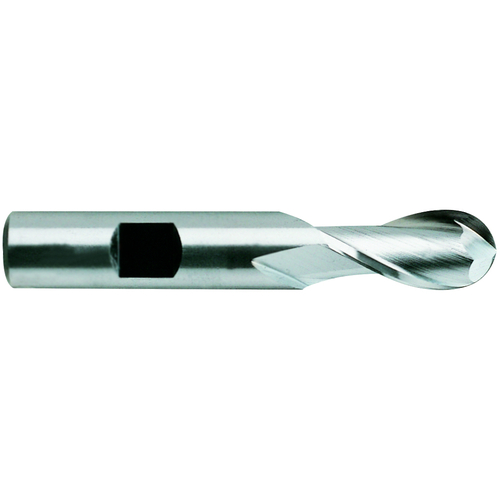

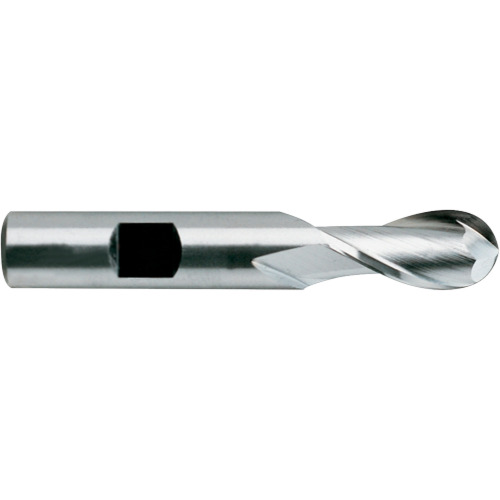

Ball Nose End Mill; 1/8″ Dia. × 3/8″ LOC × 3/8″ Shank Dia. × 2-5/16″ OAL ; 2 FL ; HSS-PM ; TiAlN ; Series E9992
BN End Mill; 1/8″ Dia. × 3/8″ LOC × 3/8″ Shank Dia. × 2-5/16″ OAL ; 2 FL ; HSS-PM ; TiAlN ; Series E9992
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 1/16″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Length Group | Regular |
| Overall Length (OAL) | 2-5/16″ | End Shape | Ball Nose |
| Cutting Edge Material | HSS-PM | Decimal Equivalent | 0.125″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E9992 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| Usable Length (LU) | 3/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.07
