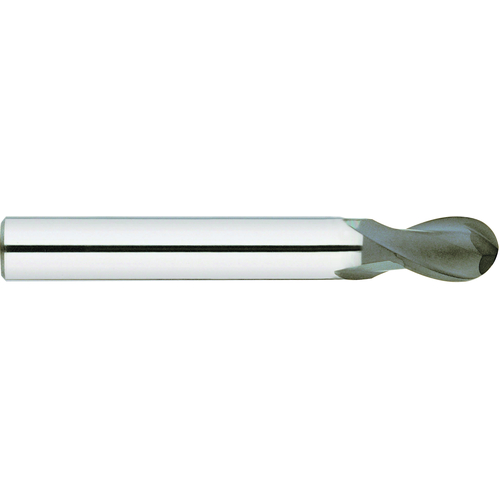

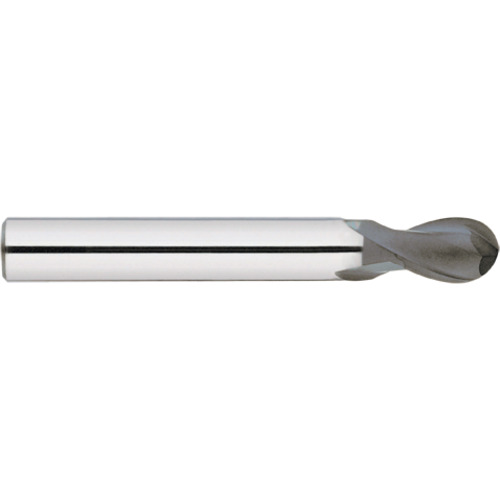

Ball Nose End Mill; 3/16″ Dia. × 5/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Diamond ; Series El099
BN End Mill; 3/16″ Dia. × 5/8″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; CVDDIA ; Series El099
| Cutting Diameter (DC) | 3/16″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 3/32″ |
| Depth of Cut Maximum (APMX) | 5/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | CVDDIA | Series/List # | El099 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.027
