1/4 2FL BN ALU-POWER

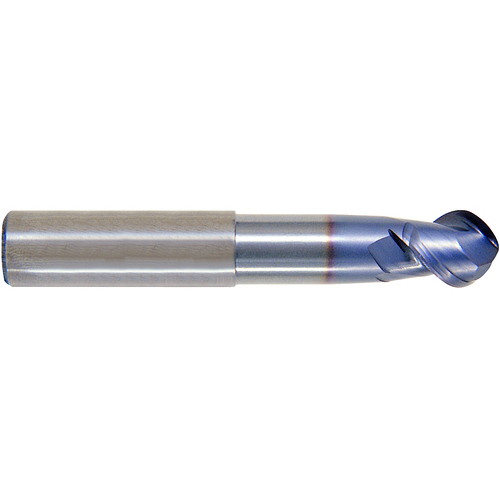

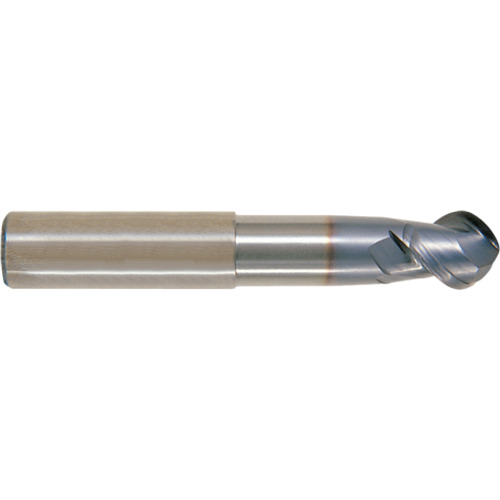

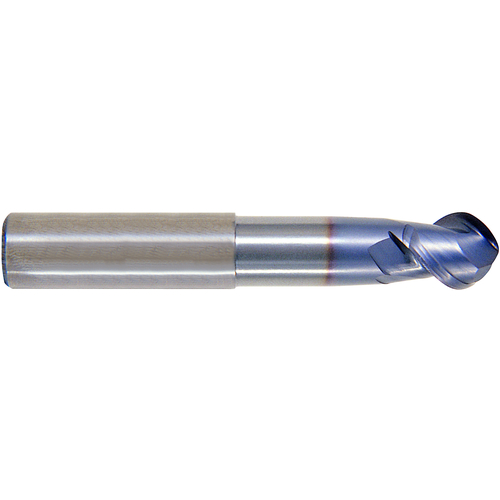

BN End Mill; 1/4″ Dia. × 7/32″ LOC × 1/4″ Shank Dia. × 2-1/4″ OAL ; 2 FL ; Carbide ; Uncoated ; Series E5974
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 7/32″ | Neck Diameter (DN) | 0.226″ |
| Overall Length (OAL) | 2-1/4″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E5974 |
| Flute Helix Angle (FHA) | 50 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 1″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.059
