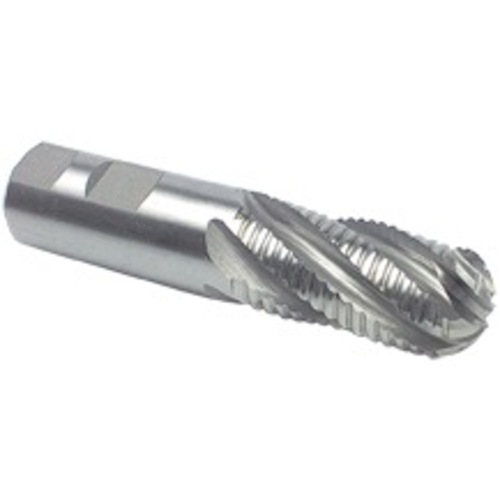

1″ Dia. × 3/4″ Shank × 2″ DOC × 4-1/2″ OAL, HSSCo Uncoated, Coarse , 5 Flute, Ballnose End Mill
BN End Mill; 1″ Dia. × 2″ LOC × 3/4″ Shank Dia. × 4-1/2″ OAL ; 5 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 5 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Roughing - Ball End |
| Depth of Cut Maximum (APMX) | 2″ | Length Group | Standard |
| Overall Length (OAL) | 4-1/2″ | Flute Type | Coarse |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 1″ |
| Coating | Uncoated |
Product Features
| Remarks | •M-42 Cobalt - Coarse Tooth Ball End Roughing End Mills •For general purpose milling of soft to medium hard materials •Suitable for heavier feed rates •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.613
