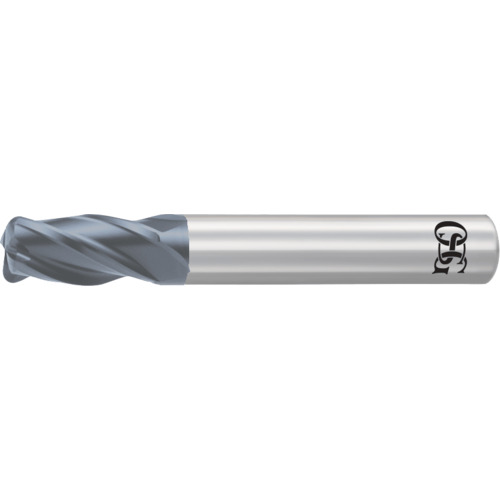

1/8″ Dia. × 1/8″ Shank × 1/2″ DOC × 1-1/2″ OAL, 0.0″ Corner Radius, Carbide WXL, 4 Flute, Round, Corner Radius End Mill
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.02″ RE ; 0.02″ RE ; 4 FL ; 1/2″ LBS ; Carbide ; AlTiCrN ; Series 3670
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | High Performance |
| Overall Length (OAL) | 1-1/2″ | Length Group | Standard |
| Cutting Edge Material | Carbide | Style | Corner Radius |
| Coating | AlTiCrN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 3670 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Remarks | •EXOCARB WXL Coated Carbide End Mills •4 Flute Corner Radius End Mills •High Efficiency Milling in a wide range of materials including non-ferrous, mild steels, and hardened steels up to 50 HRC •The WXL coating was developed to improve performance in a wide range of materials, but also offer consistent milling in both wet and dry applications •The WXL coated end mills not only provide an new improved coating, but new enhanced geometries along with a better substrate, allowing the WXL coating higher adhesion properties and cutting performance •Applications: For Side Milling & Shallow Slotting in non-ferrous and hardened steels •Benefits: WXL Coated, Enhanced Geometry and Substrate | Country of Origin | Japan |
Shipping Info
Package Length
1.65000
Package Width
.45000
Package Height
.35000
Package Weight
0.02
