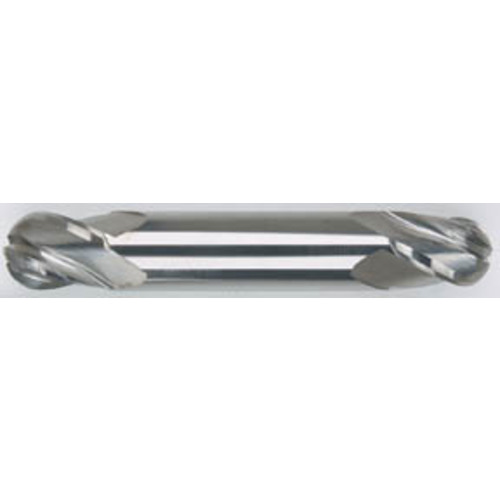

1/2″ Dia. × 1/2″ Shank × 5/8″ DOC × 3″ OAL, Carbide 4 Flute, 30° Helix, Ballnose End Mill Series/List #5949
BN End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 5949
| Cutting Diameter (DC) | 1/2″ | Tool Type | Double End |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Length Group | Stub |
| Depth of Cut Maximum (APMX) | 5/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 3″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | Uncoated | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 5949 |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 5/8″ |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
5.00000
Package Width
.50000
Package Height
.50000
Package Weight
0.255
