5948T 7/32 × 1/4 2FL DE

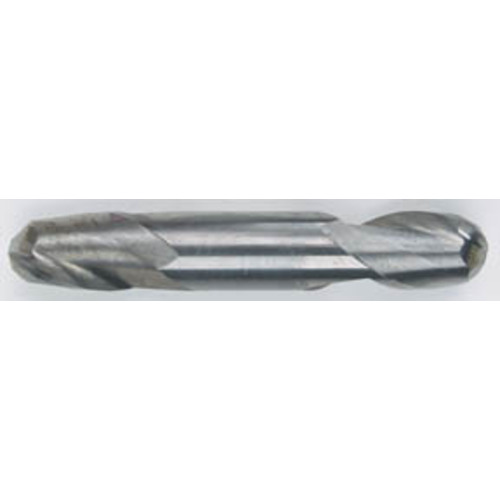

‎BN End Mill; 7/32″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; AlTiN ; Series 5948T

Item # 1027547

Brand: Morse Cutting Tools

MFG #: 90627

Legacy Part #: MT3290627

UPC #: 01027547 | 68612590627 | 686125906276

Trade Name: SOLID MASTER

Quantity Available

Cutting Diameter (DC)

7/32″

Tool Type

Double End

Connection Diameter Machine Side (DCONMS)

1/4″

Length Group

Stub

Depth of Cut Maximum (APMX)

1/2″

End Shape

Ball Nose

Overall Length (OAL)

‎2-1/2″

Coolant Supply Property (CSP)

External

Cutting Edge Material

Carbide

Style

Finishing

Coating

AlTiN

Decimal Equivalent

0.21875″

Flute Count (NOF)

Measurement Type

Inch

Flute Helix Angle (FHA)

30 Degrees

Series/List #

5948T

Shank Type

Round

Center Cutting

Yes

Applicable Material

| Carbide |

Product Features

Remarks

2-Flute Sub Length Ball Nose Double End Mills ó Solid Carbide• Ball Nose end mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots• 2-flute end mills provide increased chip capacity• Center Cutting end allows for pluge cutting like a drill into solid materials• Solid Carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and long tool life• TiALN - Titanium Aluminum Nitride excellent all around coatings featuring high heat resistance. Recommended for high thermal stress applications including dry machining, abrasive materials and hard-to-machine materials that generate higher cutting temperatures.

Country of Origin

USA

Shipping Info

Package Length

3.12500

Package Width

.37500

Package Height

.37500

Package Weight

0.055
