5956 3/16 × 3/16 2FL SE

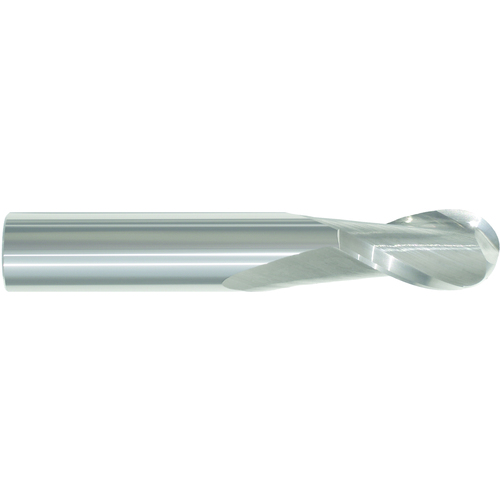

BN End Mill; 3/16″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 5940
| Cutting Diameter (DC) | 3/16″ | Applicable Material | | Carbide | |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Long |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5940 |
| Usable Length (LU) | 3/4″ | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Height
.37500
Package Weight
0.046
