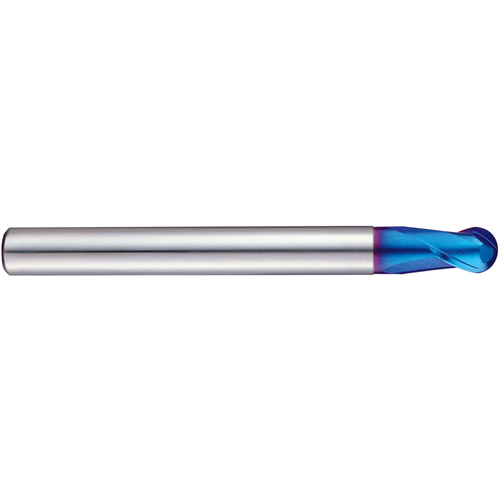

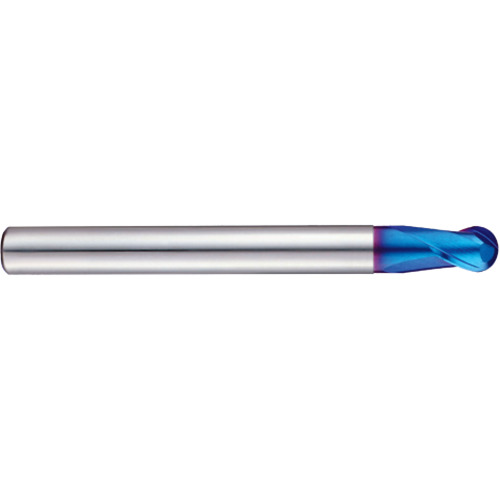

Ball Nose End Mill; 3/32″ Dia. × 3/32″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; Blue Coating ; Series G8A43
BN End Mill; 3/32″ Dia. × 3/32″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 2 FL ; Carbide ; AlTiSiN ; Series G8A43
| Cutting Diameter (DC) | 3/32″ | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 3/64″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Neck Diameter (DN) | 0.09″ |
| Overall Length (OAL) | 2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0938″ |
| Coating | AlTiSiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | G8A43 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 3/16″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.05
