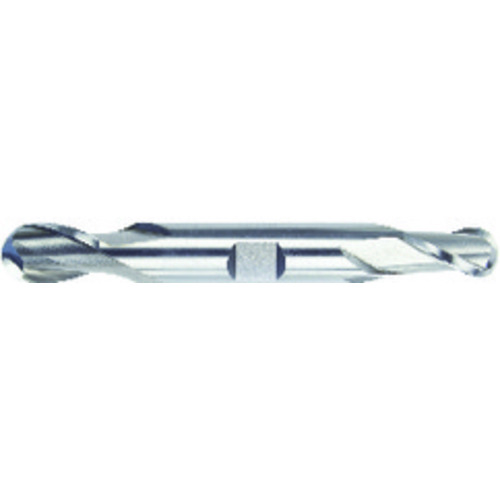

1889 9/32 × 3/8 2FL DE
BN End Mill; 9/32″ Dia. × 9/16″ LOC × 9/32″ Shank Dia. × 3-1/8″ OAL ; 2 FL ; HSS ; Uncoated ; Series 1889
| Cutting Diameter (DC) | 9/32″ | Length Group | Regular |
| Connection Diameter Machine Side (DCONMS) | 9/32″ | End Shape | Ball Nose |
| Depth of Cut Maximum (APMX) | 9/16″ | Flute Type | 30 Degree Helix |
| Overall Length (OAL) | 3-1/8″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Style | Finishing |
| Coating | Uncoated | Decimal Equivalent | 0.2813″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 1889 |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 9/16″ | Single / Double End | Double End |
| Tool Type | Double End |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.072
