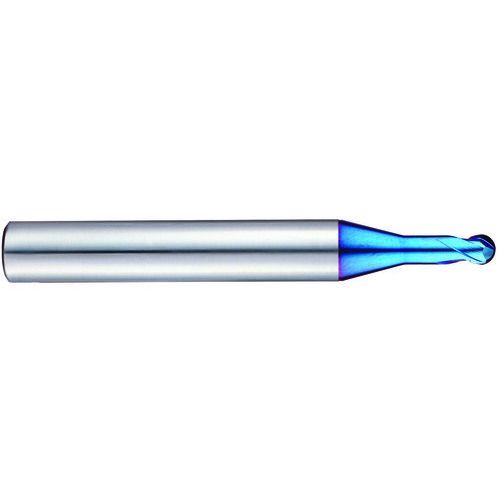

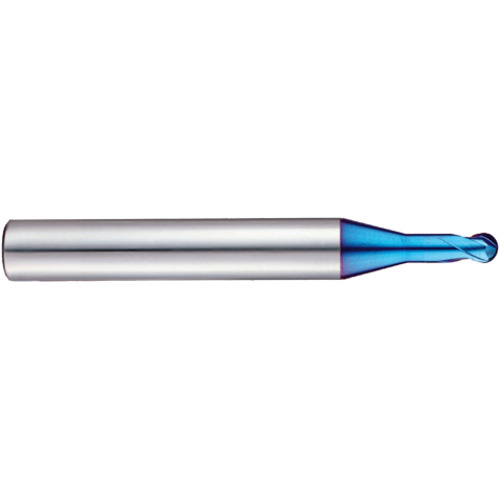

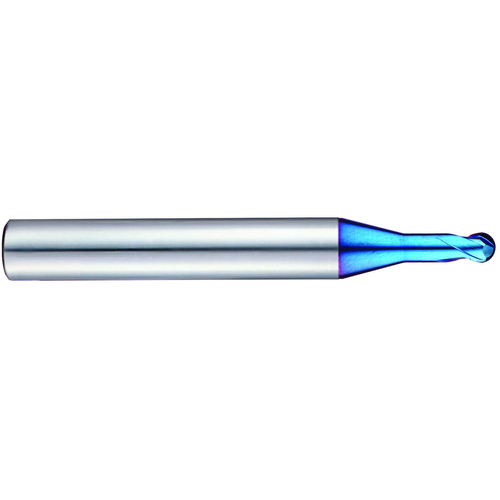

Ball Nose End Mill; 2 mm Dia. × 2 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; Blue Coating ; Series G8A54
BN End Mill; 2 mm Dia. × 2 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlTiSiN ; Series G8A54
| Cutting Diameter (DC) | 2 mm | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Neck Diameter (DN) | 1.95 mm |
| Overall Length (OAL) | 50 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0787″ |
| Coating | AlTiSiN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | G8A54 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 6 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0
